Context Diagrams
Understanding the relationship between your Membership app, Merchant Pay and the Wallet infrastructure.
Single Mobile app

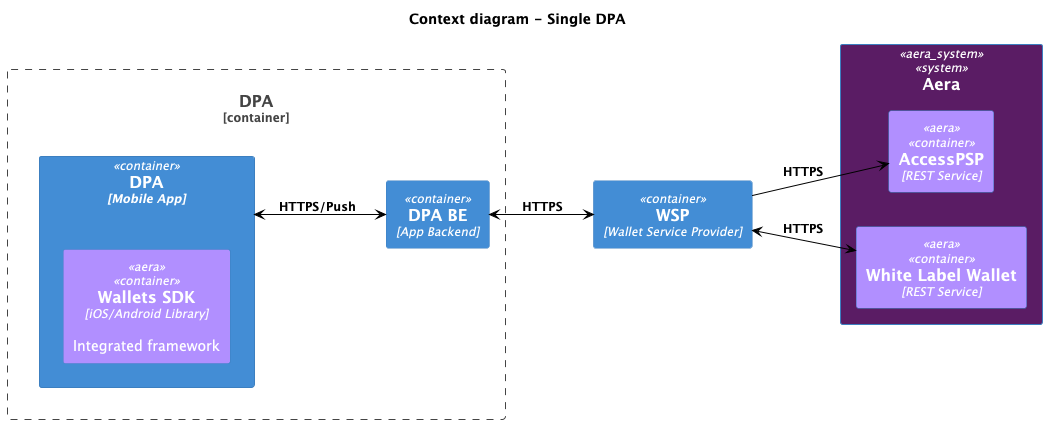

Figure 15. Single Mobile app (DPA) and Mobile app Backend (DPA BE)
Multiple Mobile apps
A good example for why you would separate the Wallet Provider (WSP) into its own application, could be that you have multiple Mobile applications (DPAs):

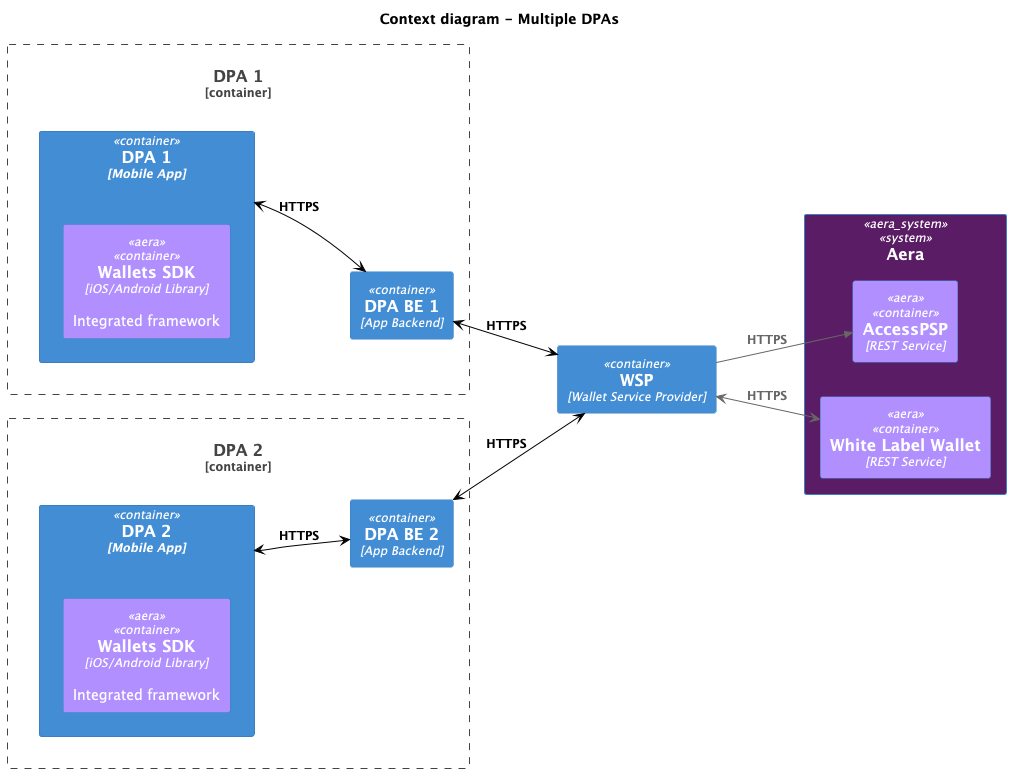

Figure 16. Multiple Mobile apps (DPAs) and Mobile app backends (DPA BEs)
